Dr. Bender Drilling motors

Drilling motors

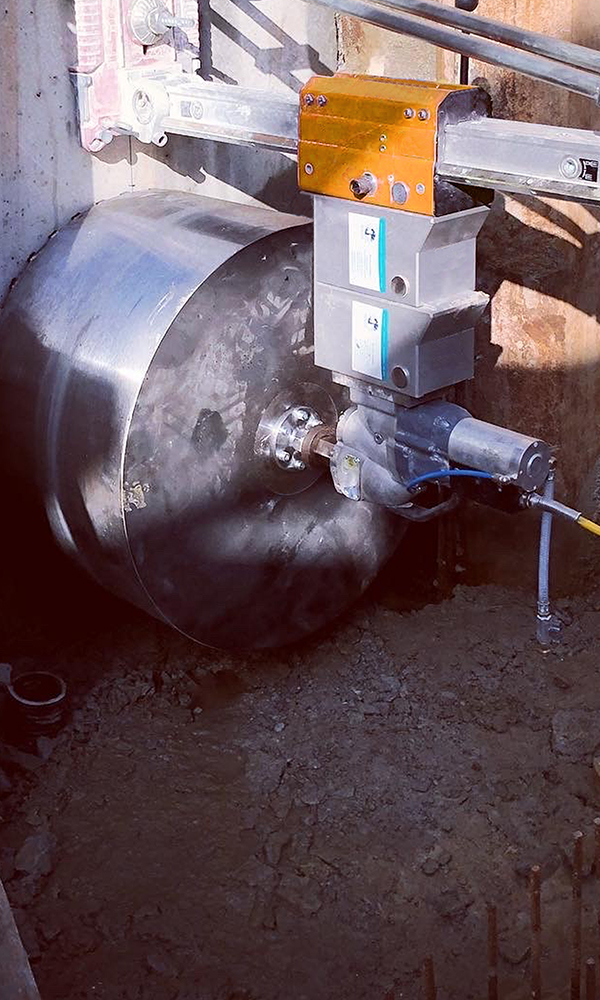

Drilling – up to Ø 1.000 mm maximum
The wide voltage range allows operation at 230 volts and 400 volts – 480 volts AC
The machine stops immediately by electronic quick-stop function
Integrated service display
An up to 30% higher efficiency brings higher power output and more torque
Durability by using high-quality components • Ergonomic design with handy dimensions

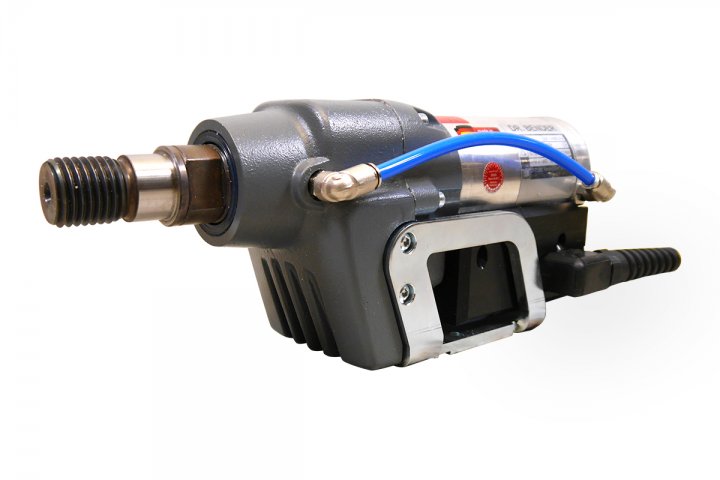

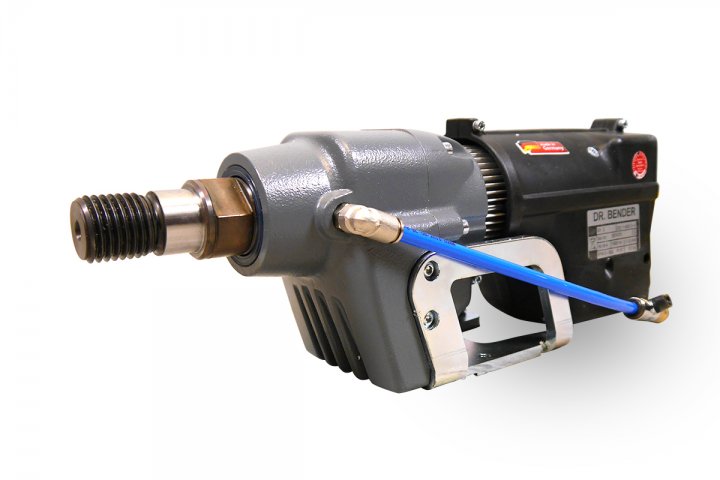

Types SXD and SXC with water- or air-cooling

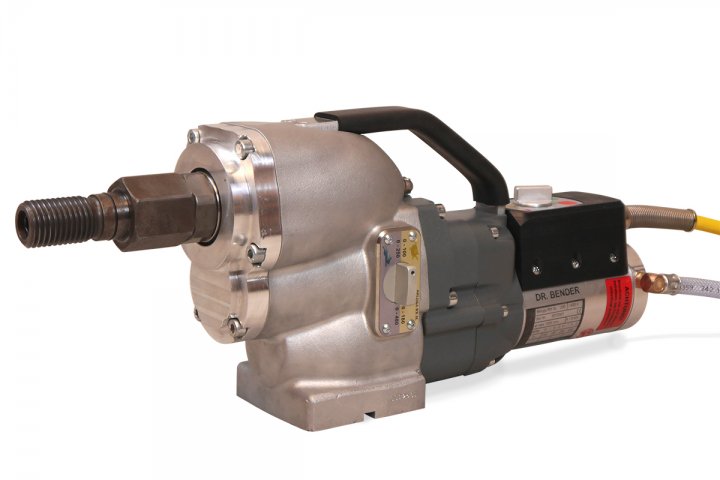

Technical datas	BELUGA RX SL		SXD		SXC
Phase	3~	1~	3~	1~	3~	1~
Rated voltage	400 V / 480 V	230 V	400 V / 480 V	230 V	400 V / 480 V	230 V
Rated power	12.000 W	3.700 W	12.000 W	3.700 W	8.000 W	3.700 W
50-60 Hz	50-60 Hz	50-60 Hz	50-60 Hz	50-60 Hz	50-60 Hz
Rated current	32 A	16A	32 A	16A	16A	16A
Rated speed	0-100/0-180/0 - 250/0-480 min-1	0-100/0-180/0- 250/0-480 min-1	0-850 min-1	0-850 min-1	0-850 min-1	0-850 min-1
Rated torque	1.500/830/ 600/300 Nm	700/380/ 280/145 Nm	220 Nm	120 Nm	180 Nm	120 Nm
Drill bit diameter	1.000/600/250/ 120 mm	600/350/250/ 120 mm	40 – 450 mm	40 – 450 mm	40 – 450 mm	40 – 450 mm
Tool fitting	UNC 1 1/4“,	flange exchangeable	UNC 1 1/4“		UNC 1 1/4“
Cooling medium	water	water	water	water	air	air
Weight	16,5 kg	16,5 kg	8,2 kg	8,2 kg	7,8 kg	7,8 kg
Order Number	102429		302221		302189
