EBM33F • EBM33S

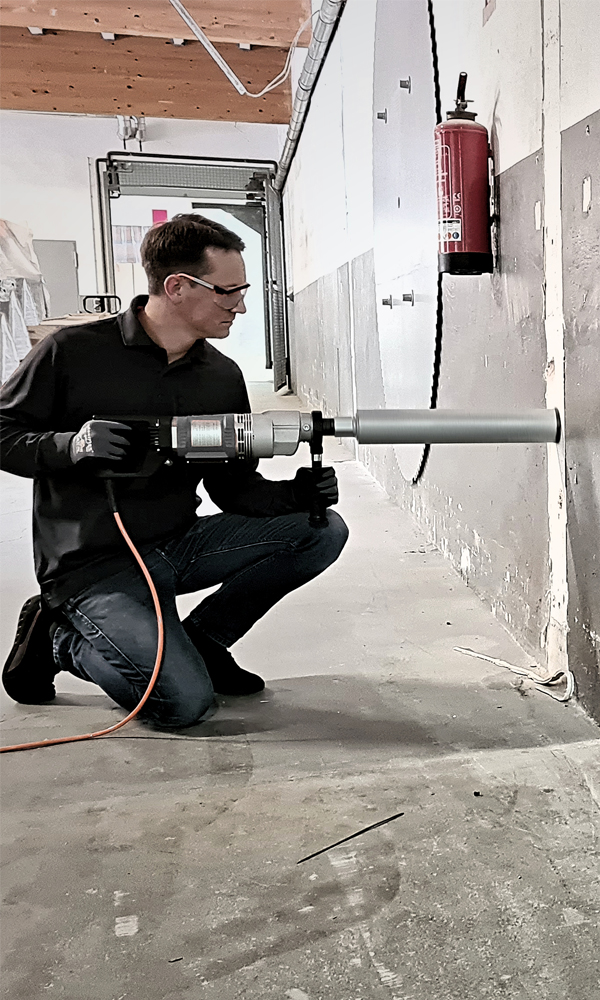

Handheld core drilling machines, 3 speed

  • Handheld core drilling machine, compact, powerfull, in
    full metall execution
  • Rotor is hand- wound, for maximum filling degree of
    copper. More copper means more power and better
    constancy of temperature, consequently better efficiency
    factor
  • Protection switch respectively overload protection
  • Dry and wet drilling (with appropriate extraction system)
  • Via the existing collar, drilling machine can be mounted
    on a rig easily.
  • Precise justify via 2 water level bubble for horizontaland
    vertical drillings
  • Water connection mountable in different positions
  • Solid transport case for easy handling and better
    protection for the machine during the transport

Technical datas EBM33F Pistol grip EBM33S D-handle
Power input 2.200W 2.200W
Power output 1.720 W 1.720 W
Voltage/ Frequency 230V/ 50-60 Hz 230V/ 50-60 Hz
Rated speed min-1 520/ 1.400/ 2.900 520/ 1.400/ 2.900
Rated torque Nm 28.12.06 28.12.06
Ø in concrete
(Wet)		 20-100mm – Hand-Held
20-160mm – Stand mounted		 20-100mm – Hand-Held
20-160mm – Stand mounted
Ø in abrasive materials
(Dry) 		20-200mm – Hand-Held 20-200mm – Hand-Held
Drill bit connection 1 ¼”“UNC + R ½” 1 ¼“UNC + R ½”
Collar Ø 60mm Ø 60mm
Dimensions mm 440×285× 100 549× 150× 100
Weight 6,5kg 6,5kg
Scope of delivery * *
Order Number 200942 200944
Execution with R 1/2” on request on request

*Carrying case, extra handle, Gardena water connection, PRCD

All models available in 110-120 Volt – 50 – 60 Hz
