Dr. Bender Handheld core drilling machines 3- speed with dust extraction system

EBM33FNT • EBM33SNT

Handheld core drilling machine, compact, powerfull, in
full metall execution
Rotor is hand- wound, for maximum filling degree of
copper. More copper means more power and better
constancy of temperature, consequently better efficiency
factor
Protection switch respectively overload protection
Dry and wet drilling (with integrated dust extraction
system)

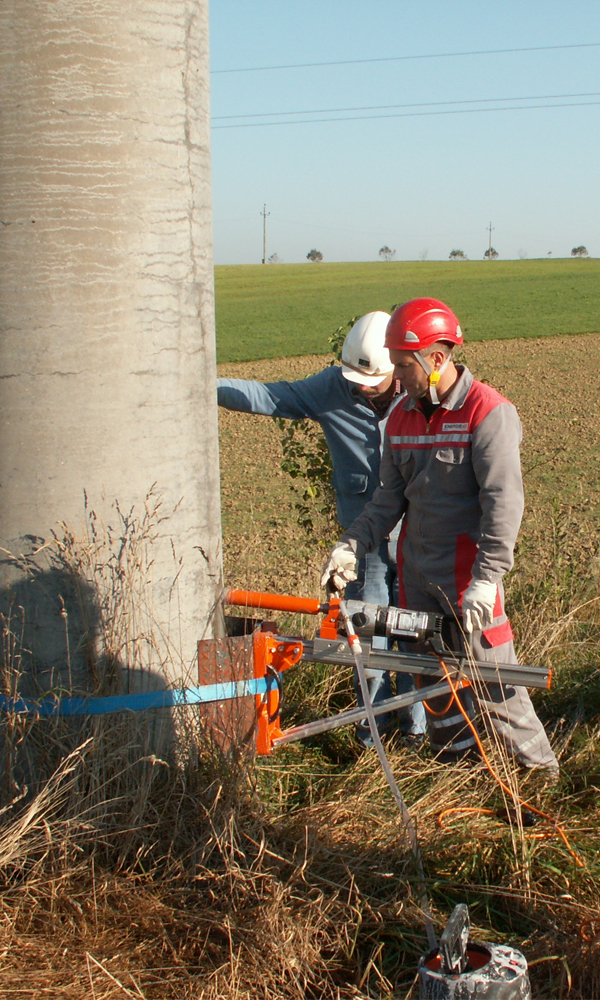

Via the existing collar, drilling machine can be mounted
on a rig easily.
Precise justify via 2 water level bubble for horizontaland
vertical drillings
Water connection mountable in different positions
Solid transport case for easy handling and better
protection for the machine during the transport
10

Technical datas	EBM33FNT Pistol grip	EBM33SNT D-handle
Power input	2200W	2200W
Power output	1720W	1720W
Voltage/ Frequency	50-60 Hz	50-60 Hz
Rated speed min-1	520/ 1400/ 2900	520/ 1400/ 2900
Rated torque Nm	28/12/6	28/12/6
Ø in concrete (Wet)	20-100mm – Hand-Held 20-160mm – Stand mounted	20- 100mm – Hand-Held 20- 160mm – Stand mounted
Ø in abrasive materials (Dry)	20- 200mm – Hand-Held Dust collector integrated	20- 200mm – Hand-Held Dust collector integrated
Drill bit connection	1 ¼” UNC + R½“	1 ¼”“UNC + R½“
Collar	Ø 60mm	Ø 60mm
Dimensions mm	440×100×285	567×100×150
Weight	6,5kg	6,5kg
Scope of delivery	*	*
Order Number	201191	201192
Execution with R 1/2”	on request	on request

*Carrying case, extra handle, Gardena water connection, PRCD
