Handheld core drilling machines, 2 speed

EBM25F • EBM23F • EBM25S • EBM23S

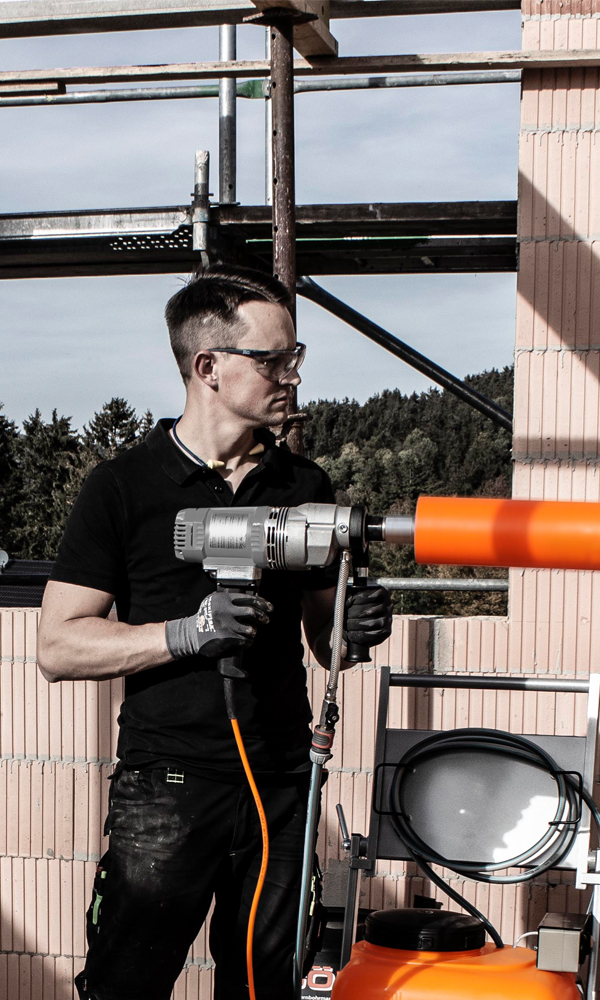

  • Handheld core drilling machine, compact, powerfull, in
    full metall execution
  • Rotor is hand- wound, for maximum filling degree of
    copper. More copper means more power and better
    constancy of temperature, consequently better efficiency
    factor
  • Protection switch respectively overload protection
  • Dry and wet drilling (with appropriate extraction system)
  • Via the existing collar, drilling machine can be mounted
    on a rig easily.
  • Precise justify via 2 water level bubble for horizontaland
    vertical drillings
  • Water connection mountable in different positions
  • Solid transport case for easy handling and better
    protection for the machine during the transport

Technical datas EBM25F
Pistol grip
EBM25S
D-handle
EBM23F
Pistol grip
EBM23S
D-handle
Power input 2.200W 2.200W 2.200W 2.200W
Power output 1.720 W 1.720 W 1.720 W 1.720 W
Voltage/ Frequency 230V/ 50-60Hz 230V/ 50-60Hz 230V/ 50-60Hz 230V/ 50-60Hz
Rated speed min-1 1.400/ 2.900 1.400/ 2.900 520/ 1.400 520/ 1.400
Rated torque Nm 12/ 6 12/ 6 28/ 12 28/ 12
Ø in concrete
(Wet)
10-70mm – Hand-Held
10-70mm – Stand mounted
10-70mm – Hand-Held
10-70mm – Stand mounted
15-100mm – Hand-Held
15-160mm – Stand mounted
15-100mm – Hand-Held
15-160mm – Stand mounted
Ø in abrasive materials
(Dry)
20-200mm – Hand-Held 20-200mm – Hand-Held
Drill bit connection R ½” R ½“ 1 ¼“UNC + R ½” 1 ¼“UNC + R ½“
Collar Ø60mm Ø60mm Ø60mm Ø60mm
Dimensions mm 347×307×100 487×140×100 407×307×100 547×150×100
Weight 5,9kg 5,9kg 5,9kg 5,9kg
Scope of delivery * * * *
Order Number 200956 200957 201232 201234
Execution with R 1/2” 200953 200954

*Carrying case, extra handle, Gardena water connection, PRCD
