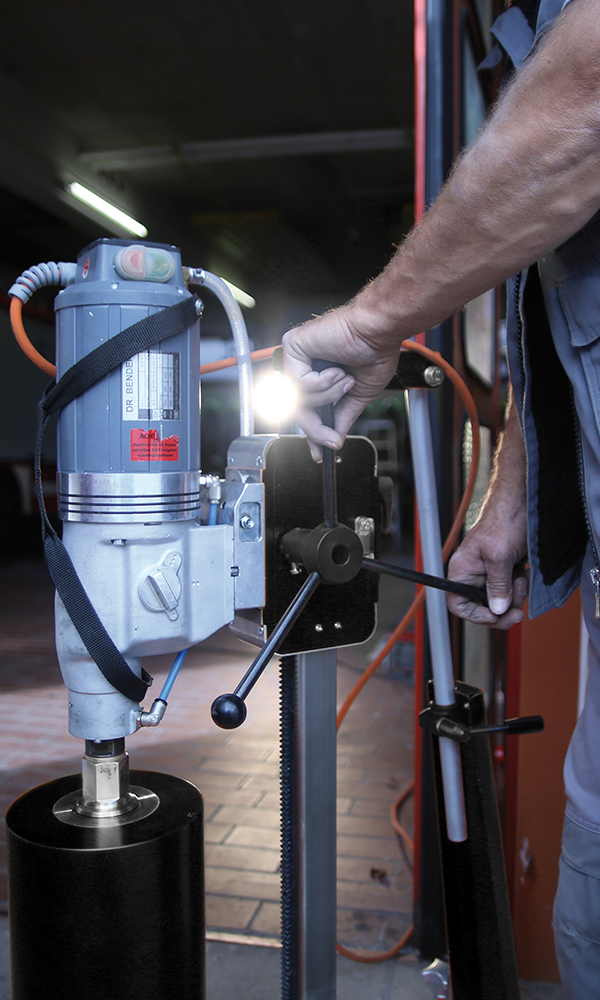

Dolphin DX5 • Dolphin DX5L

Core drilling machine with triphase motor, rig mounted

  • Triphase core drilling machine, watercooled, for extreme requirements
  • Overload protection
  • Gear protection via mechanical protection
  • 3 speed gear in oil bath with integrated oil pump
  • Water connection, mountable in different positions.
  • Mounted carrying strap with soft hand grip for ergonomic transport handling
  • Type of construction made in protection class IP55 (suitable for overhead drilling)

Technical datas Dolphin DX5 Dolphin DX5L
Power input 5200 W 5200 W
Power output 3700 W 3700 W
Voltage/ Frequency 400V/ 50-60 Hz 400V/ 50-60 Hz
Rated speed min-1 160 / 430 / 750 120 / 280 / 440
Rated torque Nm 260 / 105 / 55 320 / 165 / 95
Drilling range mm 50- 450mm 90- 500mm
Drill bit connection 1 ¼” UNC 1 ¼” UNC
Dimensions mm 616× 168× 149mm 616× 168× 149mm
Weight 22,5kg 22,5kg
Hole pattern for mounting Standard (4xM8, Key Slot 10×5mm) Standard (4xM8, Key Slot 10×5mm)
Order Number 201054 201055
